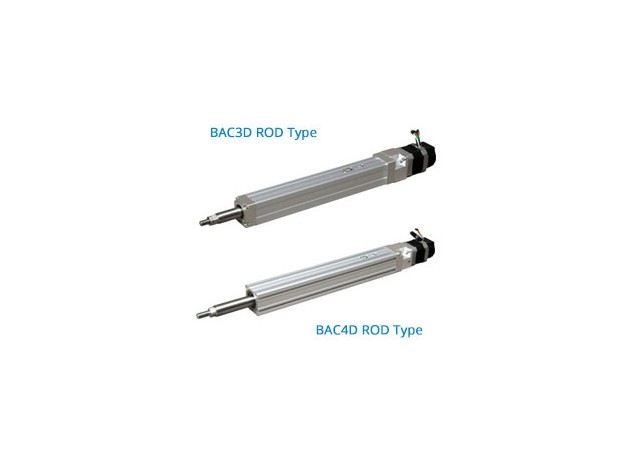

Cartesian BAC3D / 4D Rod

The high speed BAC actuators utilize a compact servo motor system and compact controller.

The BAC Series is easy to use and offers various configurations for a diverse range of applications.

	CA01-M05 Controller
Series	BAC
Teach Pendant	TPH-4C
Power Supply	24VDC
Max Power Capacity	0.25A
Dimensions	31W x 146 x 89D
Mass	0.25kg
Storage	15 points (point designation mode only)
CE Version	Tbc.
USER I/O Count	0/0
SYSTEM I/O Count	10/8
SYSTEM INPUTS	Start (+JOG), stop (-JOG), servo on, write, error reset, mode switch, point command bit 1~4
SYSTEM OUTPUTS	Run, error(READY), position complete, slider in designated area, completion point number bit 1~4 (torque control in operation, torque load, torque limit, slider locked)
Fieldbus SLAVE options	N/a
Extended I/O Options	N/a
Communications	RS232C
Standard SCOL Functions	External point designation mode, self-diagnostics
